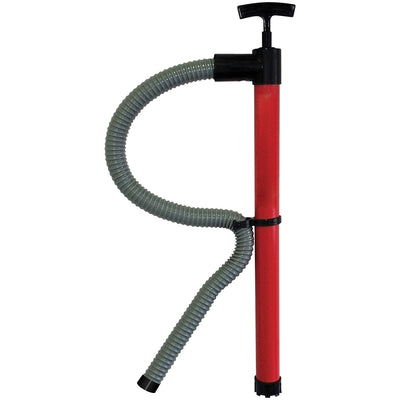

Hand Bilge Pump

50002320

Our self-priming hand pump was designed in conjunction with the agricultural industry for large scale water removal. This same design has been scaled down for evacuating small boats, canoes, kayaks, bilges or any place water collects. Removable hose length of 20", 36" or 72".

  • Light weight
  • Self-priming
  • Anti-leak design
  • Corrosion resistant
  • Removable hose for easy storage
  • Reaches small, compact areas with ease

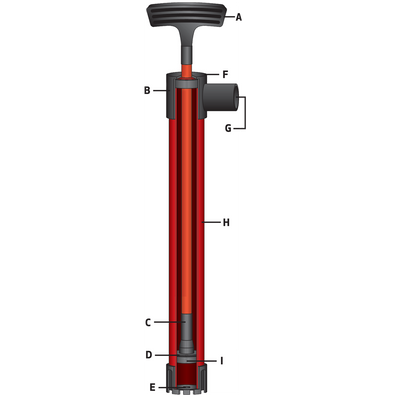

(A) Large ergonomic, easy grip, high impact handle.
(B) Tube cap. Caps the tube and forces the water out of
the outlet and also supports the plunger shaft.
(C) Plunger spacer keeps the shaft from coming up too
far and damaging the plunger washer.
(D) Plunger washer forces water up and thru the outlet.
(E) Intake foot filters water coming in. Screws off for
easy cleaning.
(F) Washer seal eliminates any leaking from the top
of the pump.
(G) Outlet features improved threads for a more secure
hold on the hose and eliminates leaking.
(H) Corrosion proof plastic construction.
(I) Plunger stop supports plunger washer when being
pulled up allowing better water flow.
